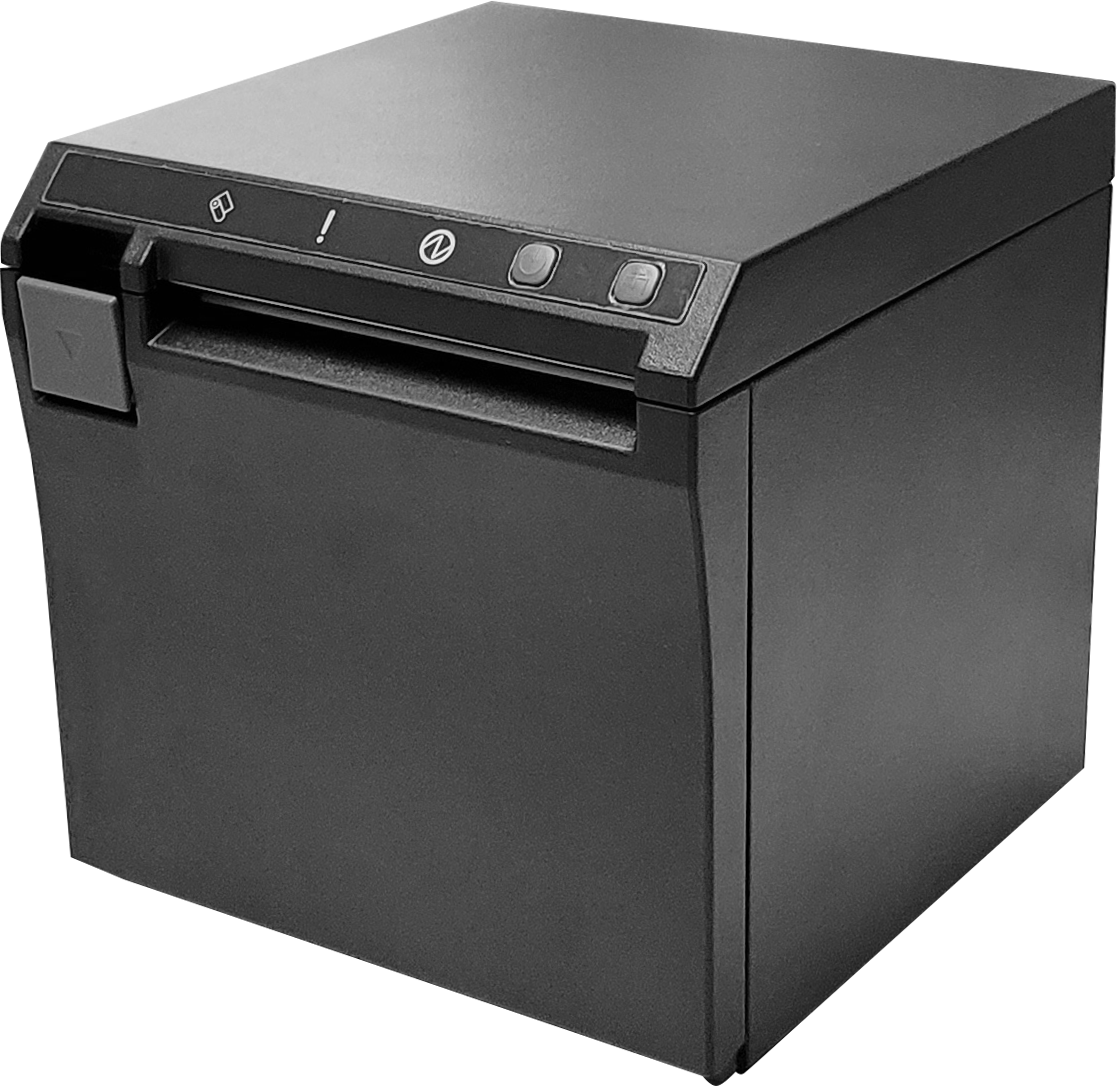

EC-PM-X30

• 58mm/80mm/82.5mm paper width available
• IAP function supports firmware update within 5S
• Emulation Driver ESC/ POS Windows/ J POS/Linux/ Android/ Mac
• Metallic frame mechanism
• Flexible interface options

Printing method : Direct thermal
Printing speed : 300mm/s
Interface : USB + Ethernet
Paper width : 79.5±0.5mm
Print width : 57.5/72/80 士0 . 5mm
Paper thickness : 0.06~0.08mm
Column capacity : 576 dots/line(adjustable by command)
Line space : 3.75mm(Changeable by commands)
Column number : 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/
Chinese, traditional Chinese - 21 columns or 24 columns
Character size : ANK, Font A: 1.5 x 3.0m m(12x2 4 dots) Font B: 1.1x2.1mm(9x17 dots)
Chinese, traditional Chinese :3.0 x 3.0mm(2 4 x2 4 dots)
Dimension : 133x126x130mm (DxWxH)
Gross weight : 1.115 kg
Bar code : UPC-A/UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
QR CODE、PDF417
Code page : PC34 7(Standard Europe)/ Katakana/ PC850(Multilingual) / PC860(Portuguese) / PC863(Canadian-French) / PC865(Nordic) / West Europe/ Greek/ Hebrew/
East Europe/ lran/WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / Pc858 / lranll /Latvian/ Arabic/ PT151(1251)
Auto Cutter : Partial
Cutter life : 2 million cuts
Print head life : 150KM
Input buffer : 2048 Kbytes
NV Flash : 256 Kbytes
Power adaptor : AC220V, 50~60Hz
Power source : DC 24V/2.5A
Cash drawer output : DC 24V/1A
Work environment : Temperature: 0~45°C , humidity: 10~80RH%
Storage environment : Temperature: -10~60°C, humidity: 10~90RH%
Emulation : ESC/POS
Driver : Windows/ JPOS/Linux/ Andra id/Mac
Utility : Windows & Linux test Utility
SDK : iOS, Android, Windows
