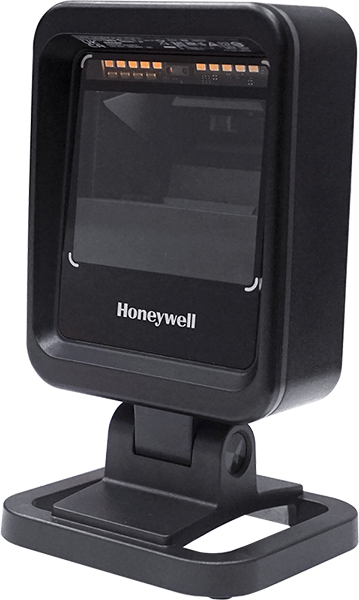

Hands-free Presentation Scanner
Honeywell Genesis™ XP 7680g
20% faster scanning speed and a larger scanning area than previous products
Full 1 mega-pixel imager and fast processor
360° tri-color LED ring highlights the scanning target area
Removeable and adjustable compact stand
Application
- Hands-Free, Presentation Scanning
DIMENSIONS
Weight : 340 g (12 oz)
Overall Dimensions 3.2\ x 1.6\ x 4.1\ no stand; 3.2\ x 1.6\ x 5.7\ with stand
80 mm x 40 mm x 105 mm no stand; 80 mm x 40 mm x 145 mm with stand
SCANNING SPECIFICATIONS
Pitch : 65°
Skew : 65°
Scanning Range : Standard range SR
Scan Pattern : Area Image, 1,280 x 800 pixel
Maximum Brightness : 100,000 Lux
Decode Capability : 1D/2D
Print Contrast : 20% minimum reflectance difference
Motion Tolerance : 400 cm/s for 13 mil UPC at optimal focus
HARDWARE
Engine Type : 1D/2D
Host System Interface : USB, RS-232, Keyboard Wedge, IBM 46xx RS-485
ELECTRICAL
Operating Current : 2.0 W 400 mA @ 5V
Input Voltage : 5.0V DC Typical
ENVIRONMENTAL
Operating Humidity : 0% to 95% relative humidity, non-condensing
Storage Temperature Range : -40°C to 70°C
Operating Temperature : 0°C to 50°C
