2D BT Area-Imaging Scanner

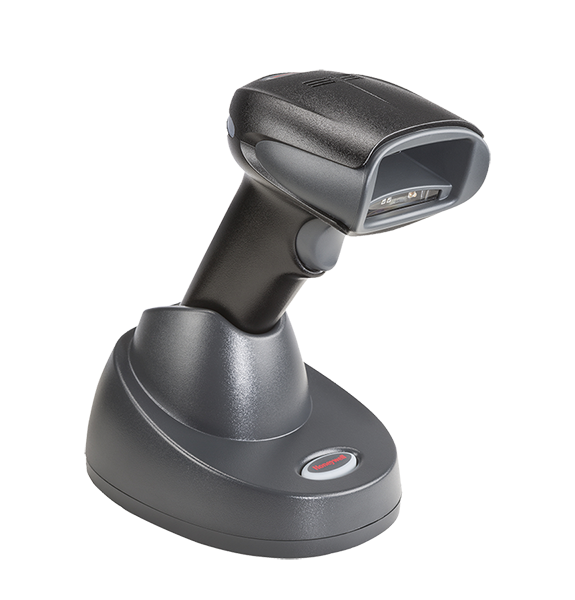

Honeywell Xenon 1902
• Designed to withstand 50 1.8 m (6 ") drops to concrete
• Excellent speed in scanning 2D barcodes including PDF417,
MicroPDF417, Postal, Matrix and QR code
• Good & fast reading even on poorly printed or damaged barcodes
Optional:
• Able to read OCR font including OCR-A, OCR-B ,MICR E-13B
• High Density (HD),Extended Range (ER)
Radio/Range : 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency
Hopping BT v2.1; Class 2: 10 m (33’) line of sight
Data Rate (Transmission Rate) : Up to 1 Mbit/s
Battery : 1800 mAh Li-ion minimum
Number of Scans : Up to 50,000 scans per charge
Expected Hours of Operation : 14 hours
Expected Charge Time : 4.5 hours
Scanner Charger/Communication Base
Dimensions (LxWxH) : 104 mm x 71 mm x 160 mm 132 mm x 102 mm x 81 mm
4.1 in x 2.8 in x 6.3 in 5.2 in x 4 in x 3.2 in
Weight : 214 g (7.5 oz) 179 g (6.3 oz)
Operating Power (Charging) : N/A 5 W (1A @ 5 V)
Non-Charging Power : N/A 0.5 W (0.1A @ 5 V)
Host System Interfaces : N/A USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature : 0°C to 50°C (32°F to 122°F) Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C (32°F to 122°F)
Humidity : 0 to 95% relative humidity, non-condensing 0 to 95% relative humidity, non-condensing
Drop : Designed to withstand 50 1.8 m (6´) drops to concrete Designed to withstand 50 1 m (3.3´) drops to concrete
Environmental Sealing : IP41 IP41
Light Levels : 0 to 100,000 lux (9,290 foot-candles)
Scan Pattern : Area Image (838 x 640 pixel array)
Motion Tolerance : Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle : (HD): Horizontal: 41.4°; Vertical: 32.2°
(SR): Horizontal: 42.4°; Vertical: 33°
(ER): Horizontal: 31.6°; Vertical: 24.4°
Print Contrast : 20% minimum reflectance difference
Pitch, Skew : 45°, 65°
Decode Capability : Reads standard 1D, PDF, 2D, Postal and OCR symbologies
*Note: Decode capabilities dependent on kit configuration
